Products
Fittings, taps and filling heads: the accessories that keep an ECOFASS keg running day to day, from filling to service.
Accessories
Dispensers, pump and compressor offered with Ecofass kegs: the specifications as published by our teams.
| Beer dispenser | TIR13020 | COL25035 | TIR24030 |
|---|---|---|---|
| Pressure adjustment | Manual, 1-3 bar | Manual, 1-3 bar | Manual, 1-3 bar |
| Configuration | 1 tap, built-in compressor | 2-tap column, built-in compressor | 2 taps, built-in compressor |
| Capacity | 30 litres/hour max | 50 litres/hour max | 40 litres/hour max |
| Weight | 20 kg | 33 kg | 30 kg |
| Dimensions W×H×D | 182 × 388 × 488 mm | 400 × 705 × 428 mm | 227 × 468 × 478 mm |
| Wine dispenser | TIR13022B | PICNIC pump | Compressor |
|---|---|---|---|
| Pressure adjustment | Automatic, 2.7 bar | Manual pump | 0-3 bar |
| Configuration | 1 tap, built-in compressor | 1 tap, no cooling system | Compressor for dispenser |
| Capacity | 30 litres/hour max | — | 40 litres/hour max |
| Weight | 22 kg | — | 3 kg |
| Dimensions W×H×D | 291 × 460 × 372 mm | 291 × 460 × 372 mm | — |
The PICNIC pump works without electricity or gas.
Accessories
The accessories that go with the keg through filling, service and maintenance.

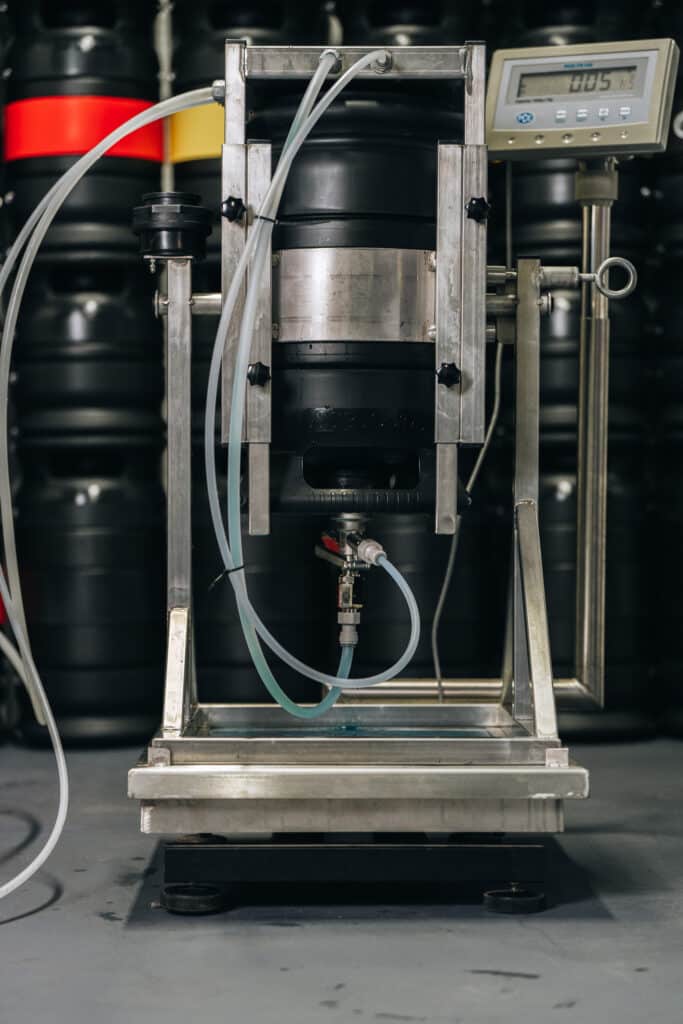

Stainless-steel manual inverter stand supplied with a type “A” or “S” filling head and pressure gauge, fittings, liquid hose (½ in.) and gas hose (3/8 in.). Makes filling easier and reduces handling. Optional: scale for checking volume by weight.
Ecofass keg tightening bell with an aluminium insert compatible with a standard ½-inch square-drive wrench. Provides the safety tightening of the keg nut and seals the assembly.

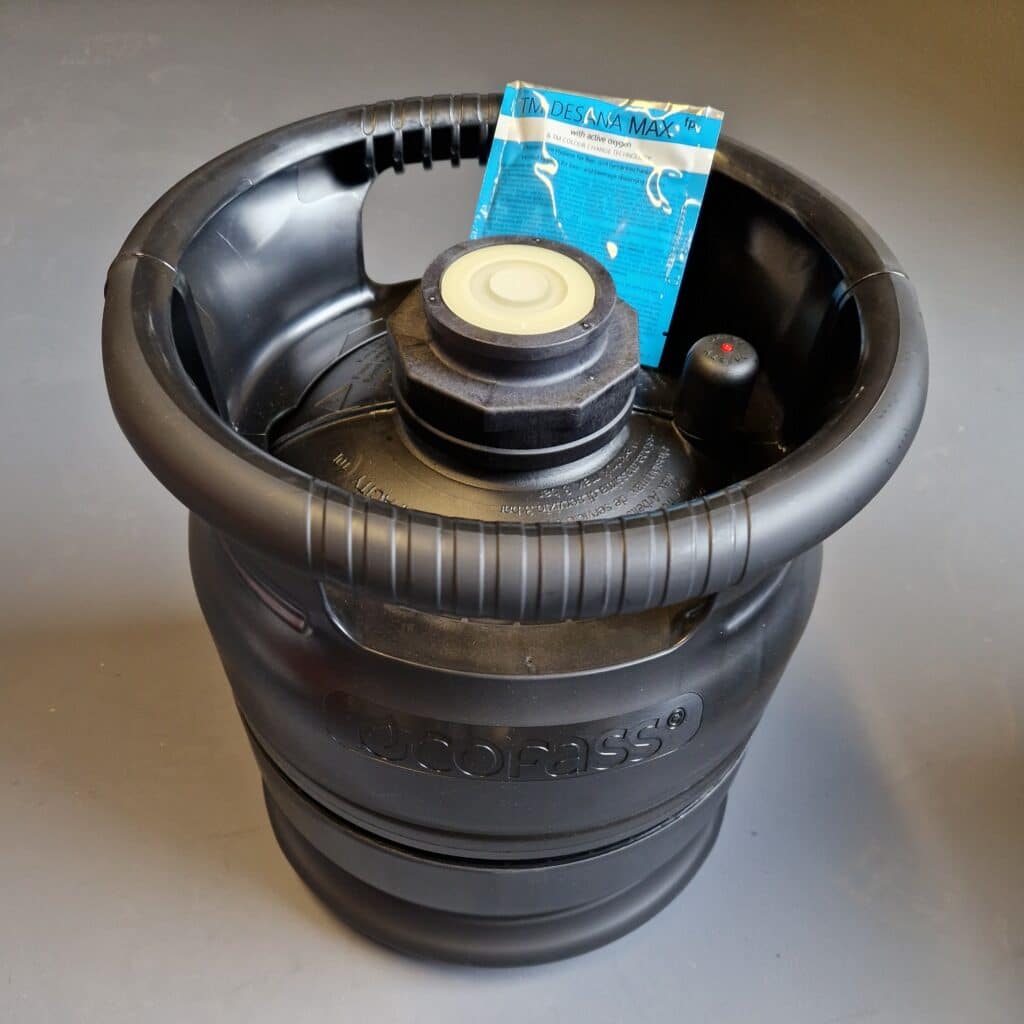

Contents: 1 Ecofass 10L keg, 1 dip tube with a type “A” or “S” head, 10 sachets of alkaline product with their data sheet.

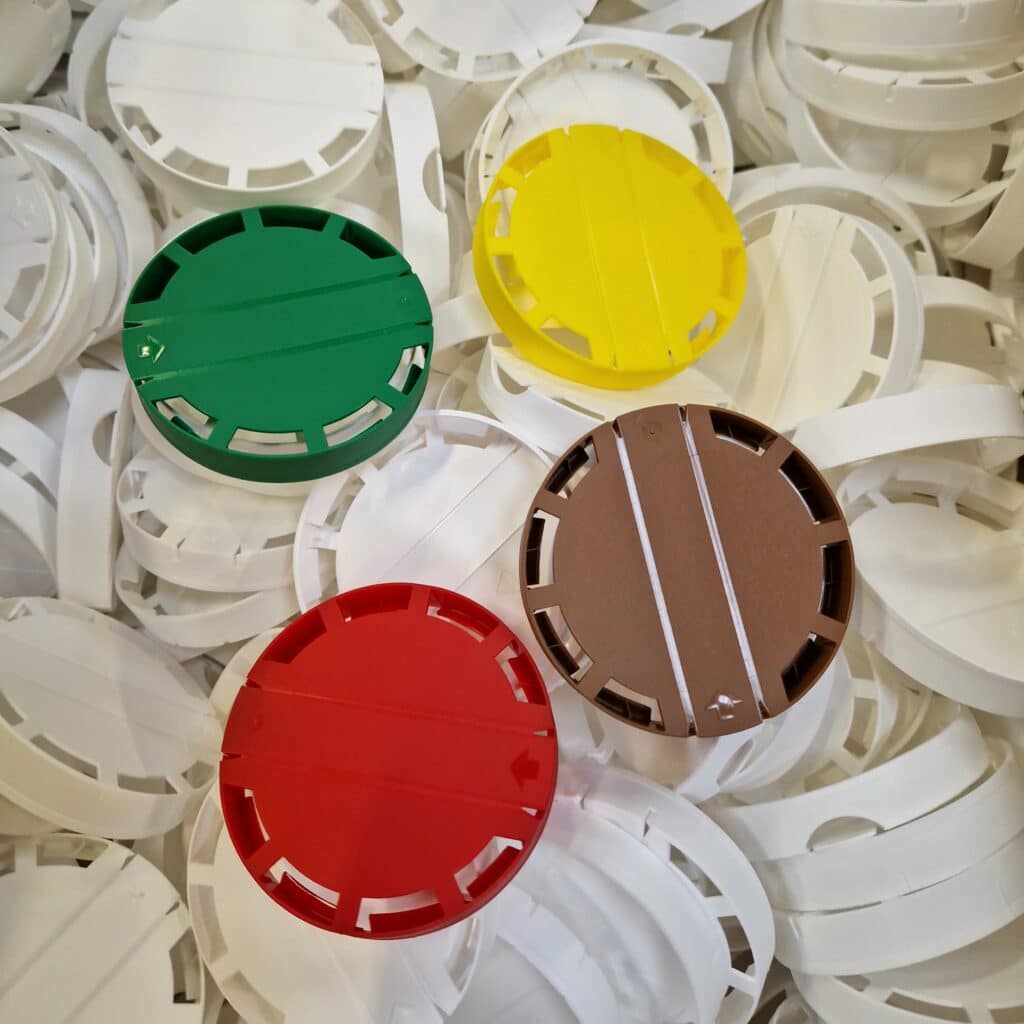

Applied to the keg head at the end of filling. Available colours: white, yellow, brown, green, red.
Important! The keg must be depressurised before loosening — dispensing generally takes place between 1.8 and 2.5 bar. Before disassembly, engage the filling head to release the counter-pressure between the keg and the pouch. Never store an empty keg under pressure: depressurise the keg as soon as it returns. Be sure to remove the non-return seal on the air side; the nut can then be unscrewed and the pouch + head assembly removed.
ECOFASS offers the possibility of creating branded merchandise. Backed by local know-how, we are now able to build the point-of-sale display your products need, whether on existing products or on new projects: from the cup to the tray, by way of the menu holder, the tub, or fully customised merchandise.
Send us your request and let us explore what you need.
